SPARTNA SPR-262 LCR Meter

SpartnaSKU: SPR-262
filler

Price:
Sale priceAED. 1,200.00
Stock:
Sold out

Description

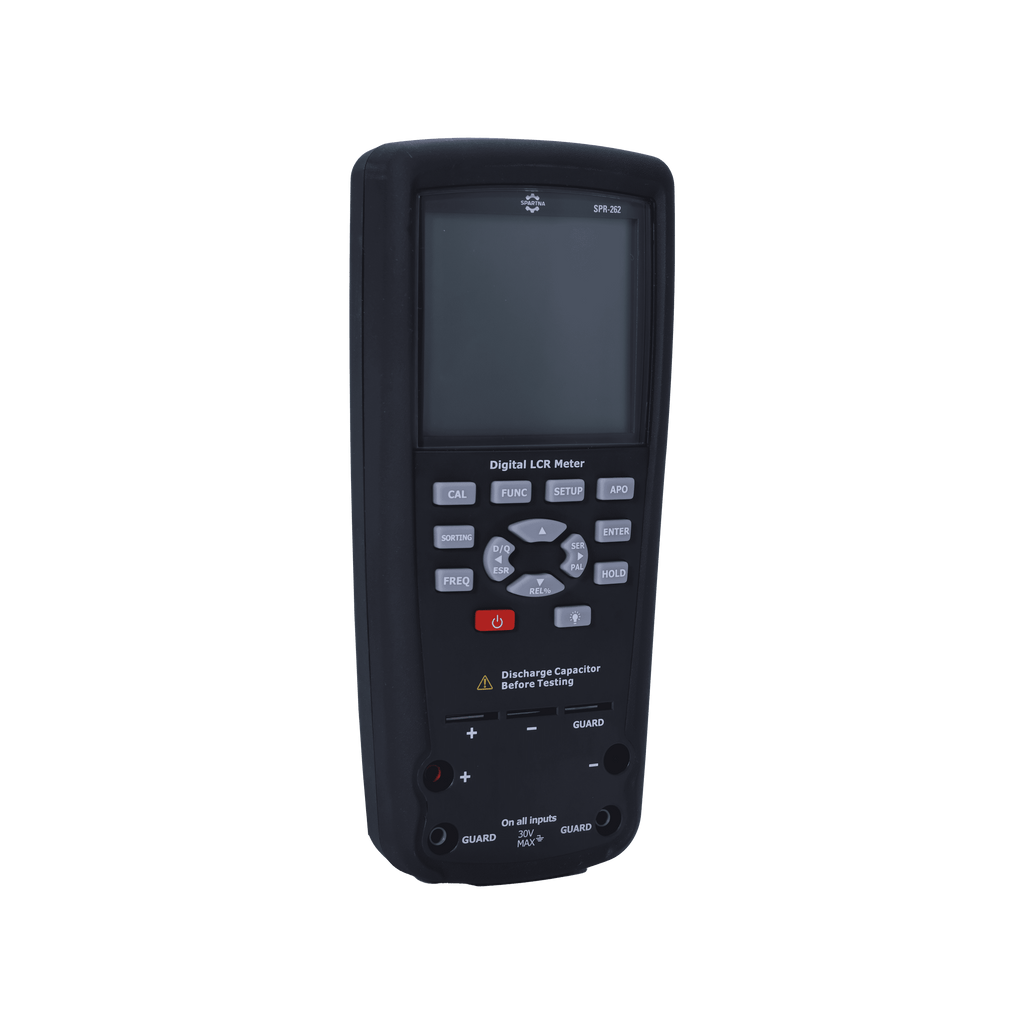

The SPR-262 is a high-precision digital LCR meter designed for measuring inductance (L), capacitance (C), and resistance (R) of electronic components. It features a dual LCD display, automatic component recognition, and selectable series/parallel measurement modes. The device supports five test frequencies (100Hz, 120Hz, 1kHz, 10kHz, 100kHz), making it suitable for testing a wide range of passive components including capacitors, inductors, and resistors.


This meter is ideal for electronics engineers, technicians, and hobbyists who require accurate and reliable measurements in laboratory, production, or field service environments.

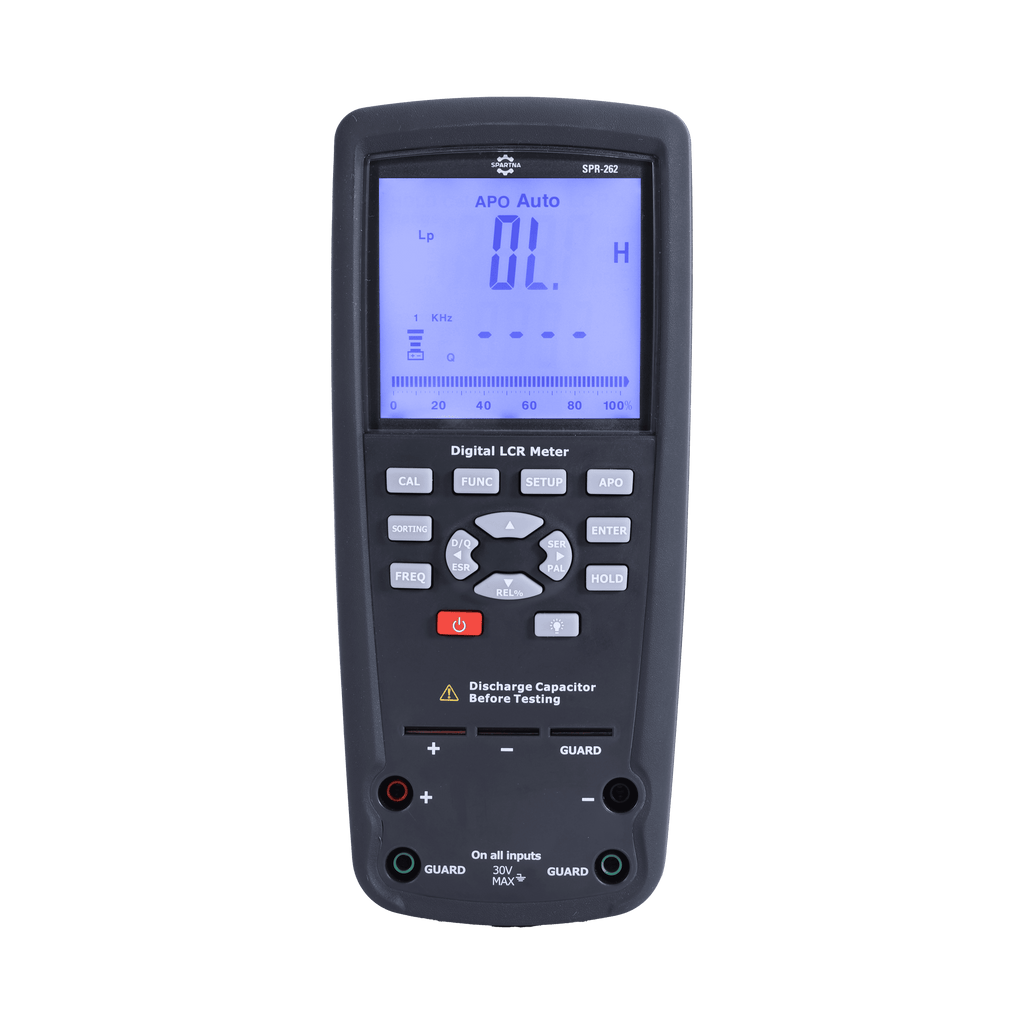

  • Dual Display : Simultaneously displays primary and secondary parameters (e.g., Ls/D, Cp/Q).
  • Auto LCR Smart Check : Automatically identifies and measures component type.
  • Series/Parallel Mode Selection : Optimizes measurement accuracy based on component value.
  • Multiple Test Frequencies : Supports 100Hz, 120Hz, 1kHz, 10kHz, and 100kHz for precision testing.
  • DC Resistance (DCR) Measurement : Measures resistance from 200Ω to 200MΩ.
  • ESR & Dissipation Factor (D/Q) : Provides detailed component analysis.
  • Backlight & Buzzer : Enhances visibility and provides audible feedback.
  • Battery-Powered Operation : Operates on six standard AA batteries.
  • Safety Protection : Includes overvoltage and discharge protection circuits.

Parameter Details
Measurement Functions Inductance (L), Capacitance (C), Resistance (R), DCR, ESR, D/Q, θ (phase angle)
Test Frequencies 100Hz, 120Hz, 1kHz, 10kHz, 100kHz
Test Signal Level 0.6mV RMS typical
Inductance Range (Ls/Lp) 200.00μH – 2000.0H
Capacitance Range (Cs/Cp) 2000.0pF – 2000.0μF
Resistance Range (Rs/Rp) 20.000Ω – 200.0MΩ
DCR Measurement Range 200.00Ω – 200.0MΩ
Display Dual LCD with backlight
Series/Parallel Modes Selectable
Component Recognition Auto-detects L, C, R types
Battery Power 6 x 1.5V AA alkaline batteries
Auto Power Off (APO) Activated after 5 minutes of inactivity (can be enabled/disabled)
Safety Protection Overvoltage protection; must discharge capacitors before testing
Operating Environment Indoor use only; altitude up to 2000m
Dimensions 150mm x 110mm (approx.)
Approvals CE Marked

SPR-262 Datasheet
