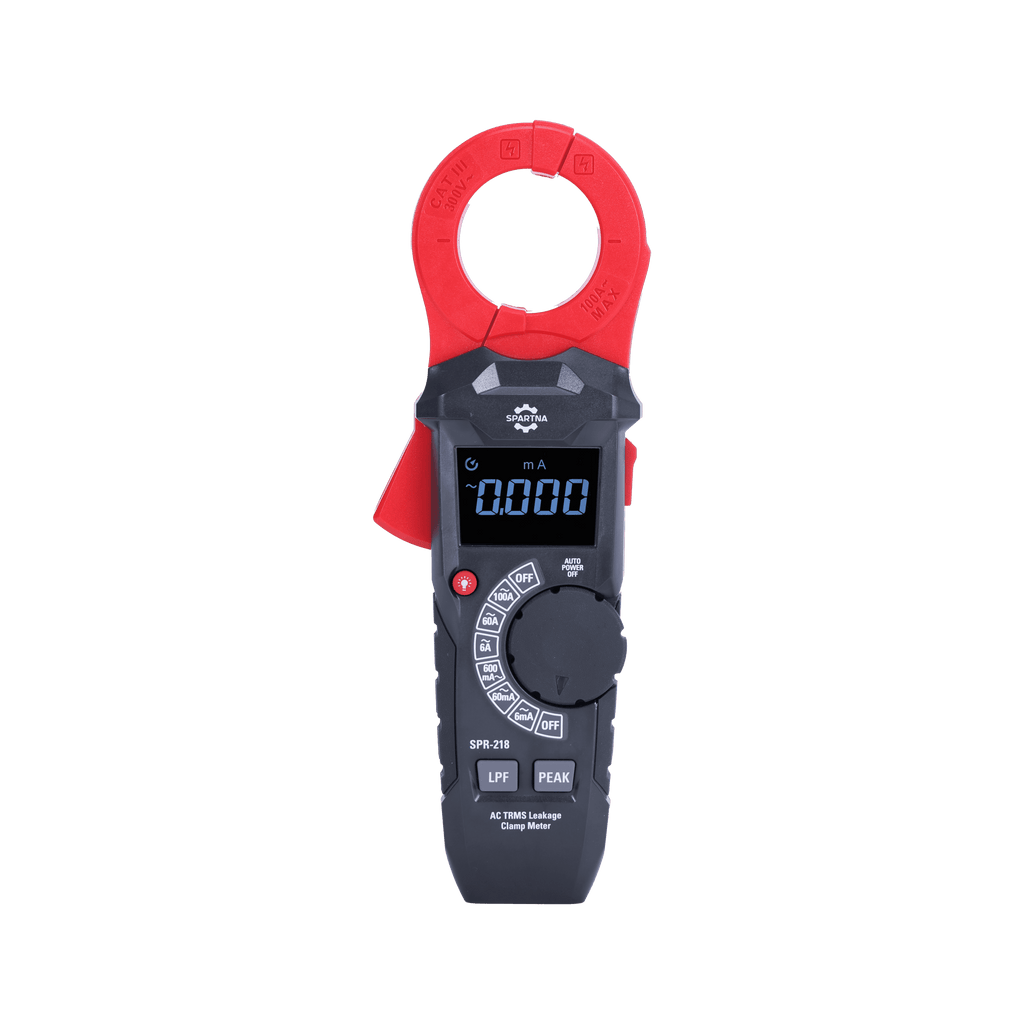

SPARTNA SPR-218 AC TRMS Leakage Clamp Meter

SpartnaSKU: SPR-218
filler

Price:
Sale priceAED. 1,250.00
Stock:
Sold out

Description

The AC TRMS Leakage Clamp Meter is a specialized digital clamp meter designed for accurate measurement of leakage currents in electrical systems. It features True RMS technology to ensure precision on both sinusoidal and non-sinusoidal waveforms. This device is ideal for electricians, engineers, and maintenance technicians who need to detect and measure small leakage currents that can indicate insulation degradation or electrical faults.


With a high sensitivity down to 0.01mA and a maximum current measurement capability of up to 40A (depending on model specifications), the meter offers reliable performance in various applications. The large jaw opening allows for easy clamping around conductors without disconnecting circuits.


The device includes safety features such as overload protection, double insulation, and compliance with international standards, ensuring safe operation even in challenging environments.


  • True RMS Measurement : Ensures accuracy for distorted waveforms.
  • Leakage Current Detection : High sensitivity for measuring low-level leakage currents.

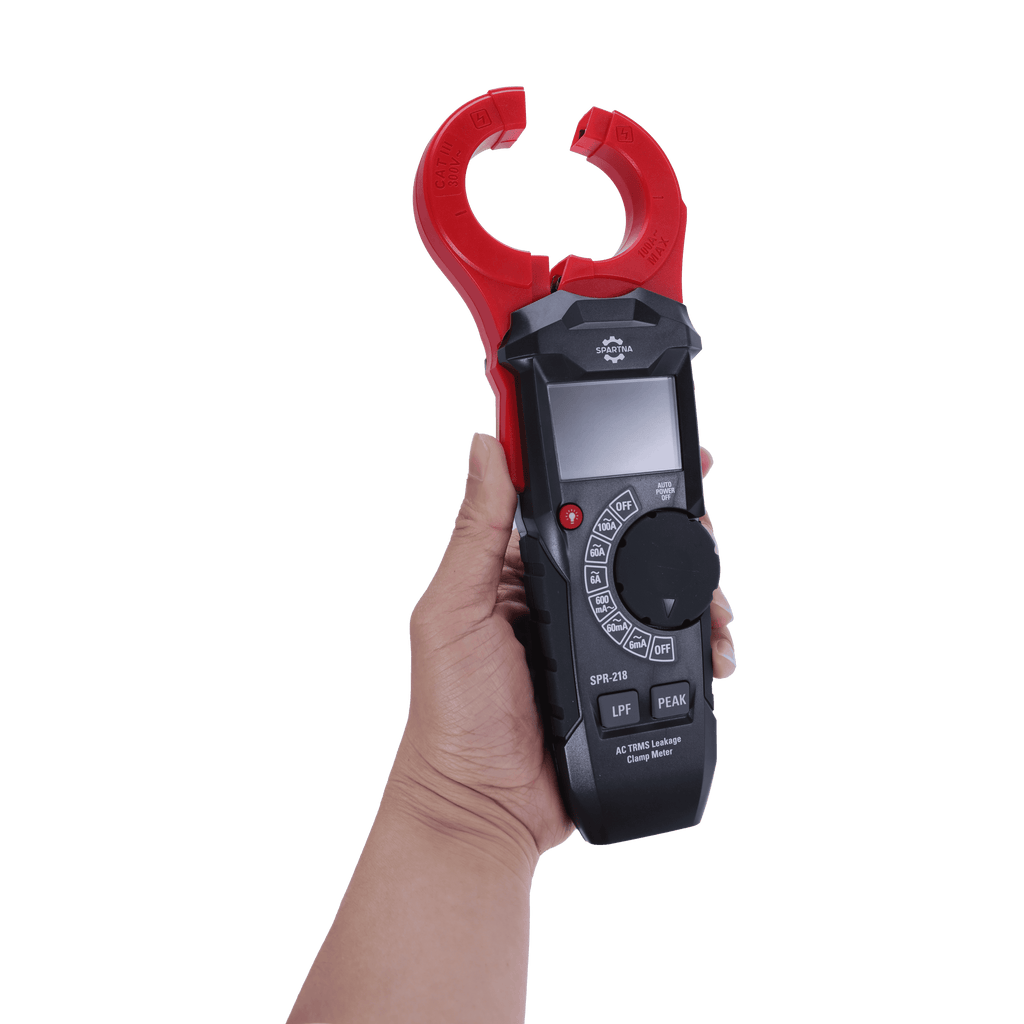

  • Large Jaw Opening : Enables easy measurement around conductors without disconnection.
  • Auto Ranging & Manual Range Selection : Offers flexibility for different measurement scenarios.
  • LCD Display with Backlight : Improves visibility in low-light conditions.
  • Overload Protection : Designed with double insulation and overvoltage protection.
  • Safety Certified : Meets CAT II 600V / CAT III 300V safety standards.
  • Low Battery Indicator : Alerts user when battery needs replacement.
  • User-Friendly Interface : Intuitive rotary switch and dedicated buttons for ease of use.
Parameter Details
Current Measurement (AC) Range: 0.01mA – 40A; Accuracy: ±(2.5% + 5 digits)
Display LCD with backlight (resolution varies depending on range)
Input Impedance Not specified
Clamp Jaw Opening Not specified
Overvoltage Protection CAT II 600V / CAT III 300V
Safety Standards IEC/EN 61010-1; Double Insulation, Pollution Degree 2
Power Supply 9V Battery (NEDA 1604) or AAA batteries (varies by model)
Auto Power Off After approx. 15–30 minutes of inactivity
Dimensions Not specified
Weight Not specified
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity (Operating) Max 80% RH up to 31°C (87°F), linearly decreasing to 50% RH at 40°C
Approvals CE Marked

SPR-218 Datasheet
