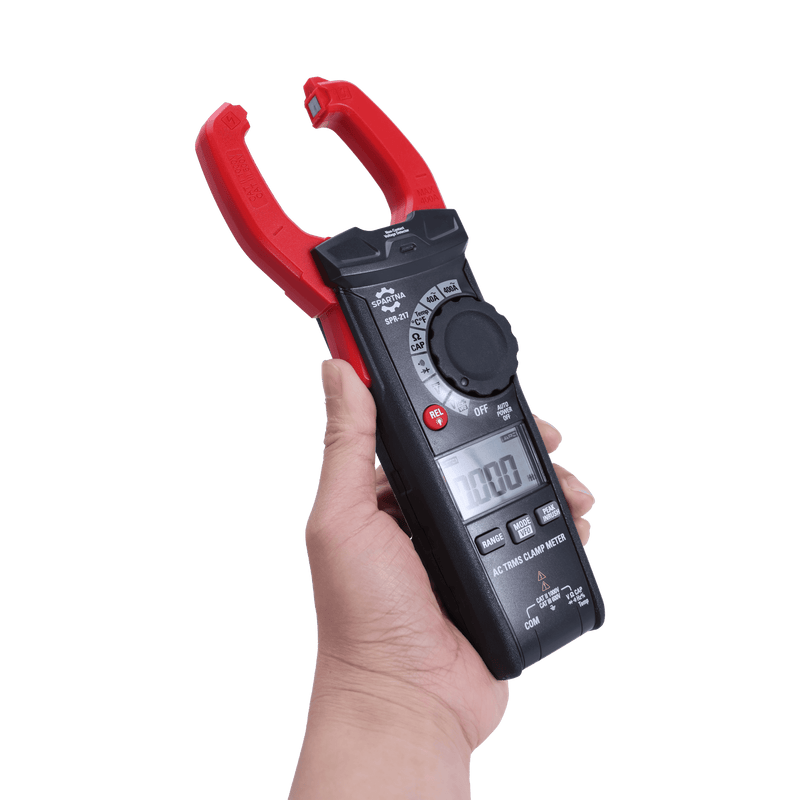

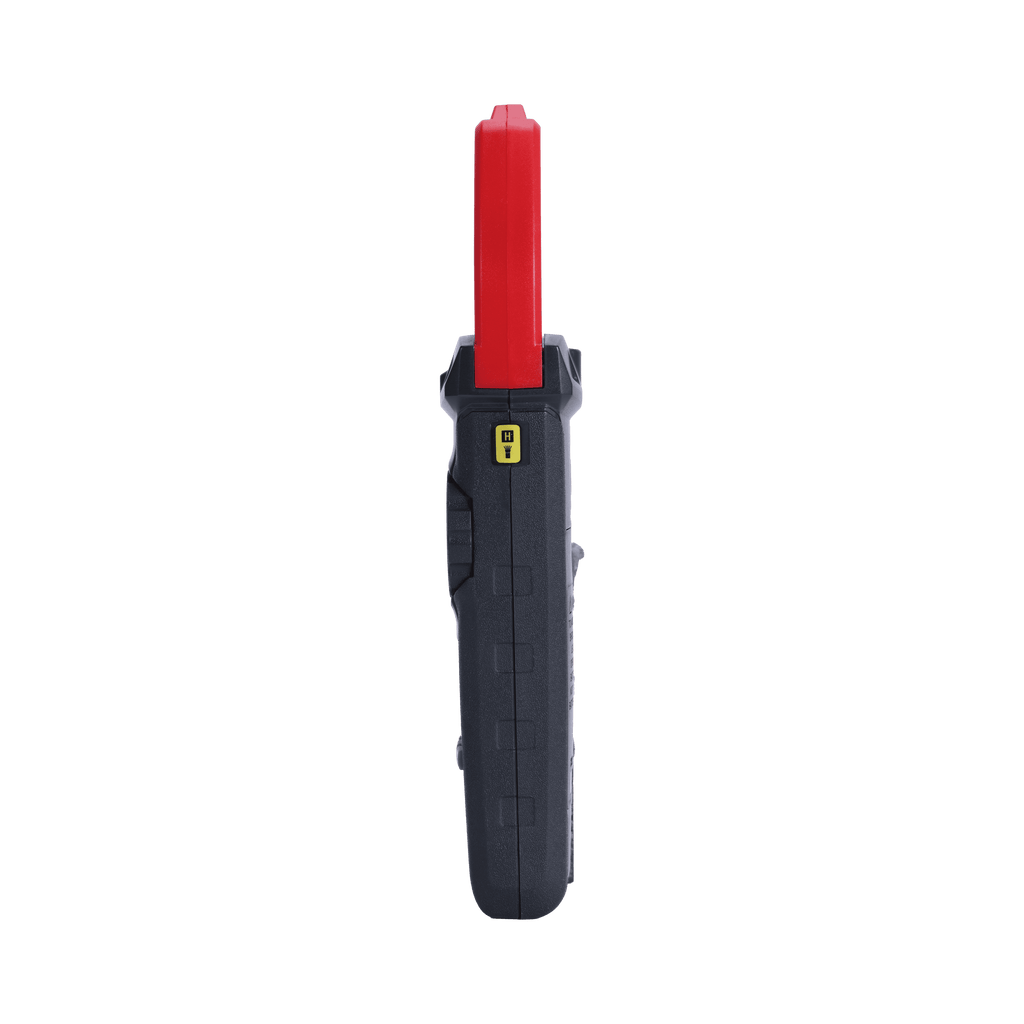

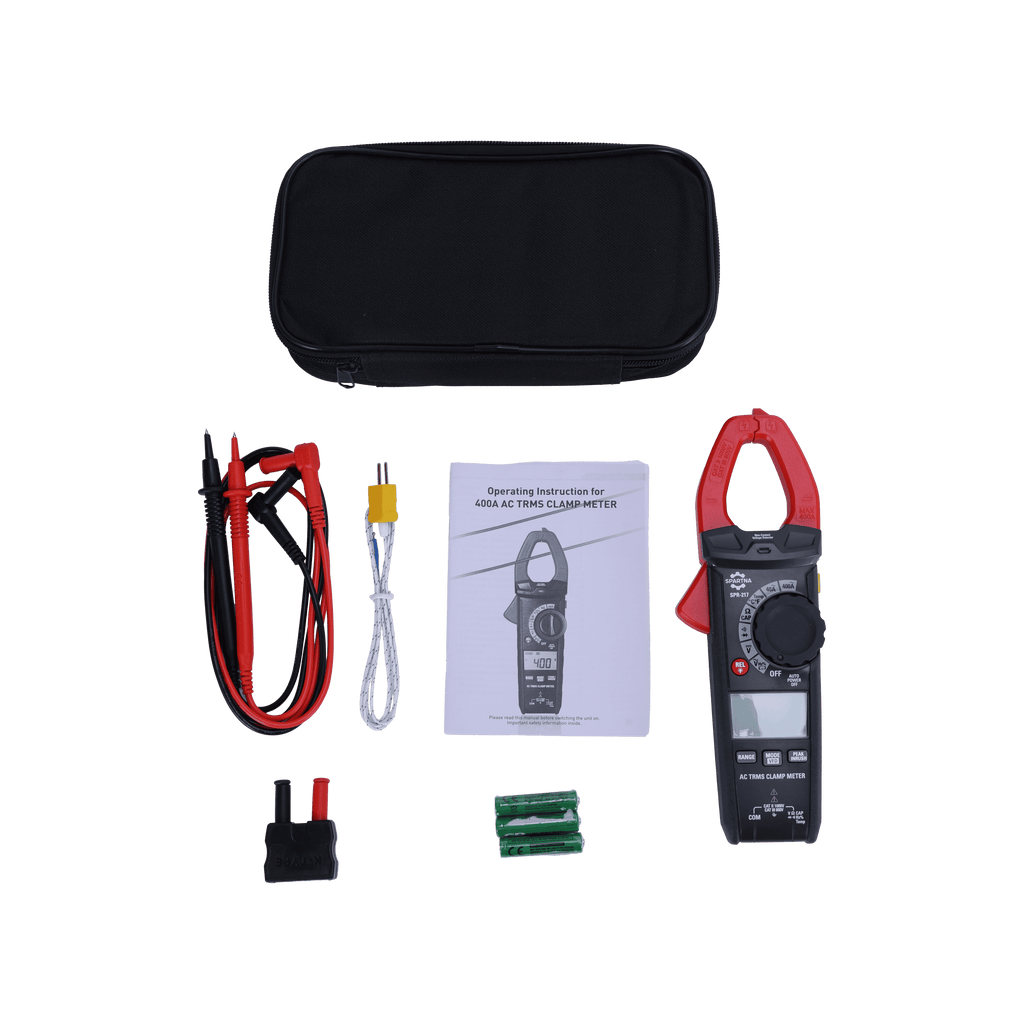

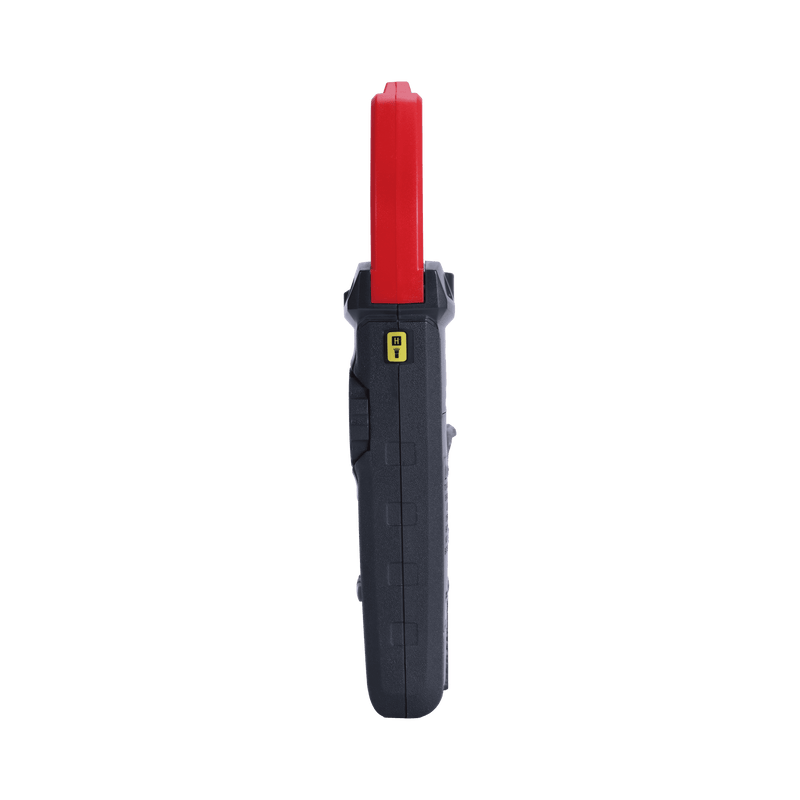

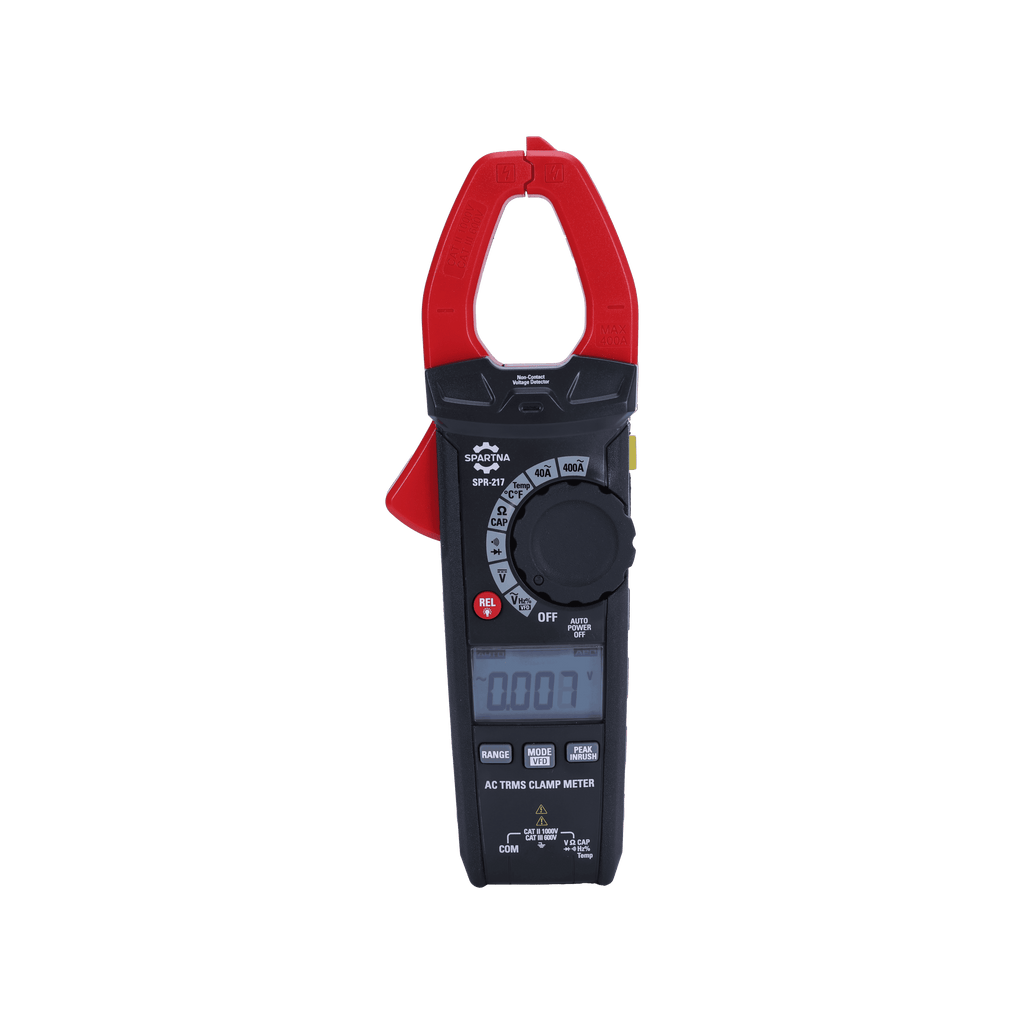

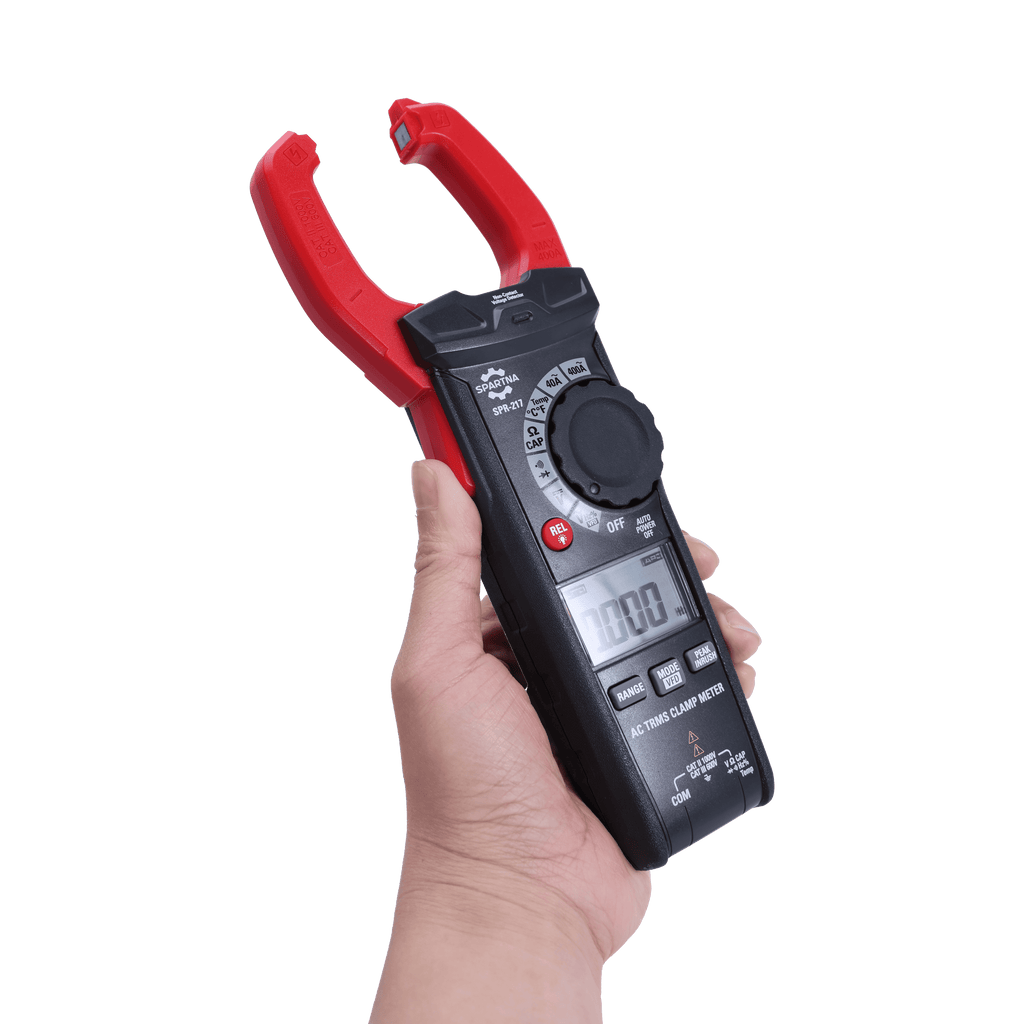

The 400A AC/DC TRMS Clamp Meter is a professional digital clamp meter designed for accurate current and voltage measurements in industrial, commercial, and residential applications. It features True RMS measurement technology for precise readings on both sinusoidal and non-sinusoidal waveforms. The device supports AC/DC current up to 400A, AC voltage up to 1000V, and includes functions such as resistance, capacitance, frequency, temperature, continuity, diode testing, and non-contact voltage detection. With built-in VFD (Variable Frequency Drive) mode and overload protection, it is ideal for electrical troubleshooting and maintenance.
- True RMS Measurement : Ensures accurate readings for distorted waveforms.
- AC/DC Current Measurement : Measures up to 400A AC or DC with a large jaw opening.
- Voltage Measurement : AC voltage up to 1000V; DC voltage up to 1000V.
- Resistance & Continuity Test : Includes continuity buzzer for quick circuit checks.
- Capacitance Measurement : Supports capacitance testing up to 9999µF.
- Frequency & Duty Cycle : Measures frequency up to 100kHz and duty cycle from 0.1% to 99.9%.
- Temperature Measurement : Supports Type K thermocouples (-40°C to 1000°C).
- Non-Contact Voltage Detection : Detects live conductors without direct contact.
- VFD Mode : Optimized for variable frequency drive measurements.
- Data Hold & MAX/MIN Mode : Captures and stores peak values for analysis.
- Auto Ranging & Manual Range Selection : Offers flexibility for different measurement scenarios.
- LCD Display with Backlight : Improves visibility in low-light conditions.
- Overload Protection : Designed with double insulation and overvoltage protection (CAT II 1000V / CAT III 600V).
| Parameter | Details |
|---|---|
| Current Measurement (AC) | Range: 40.00A – 400.0A; Accuracy: ±(2.5% + 8 digits) |
| Current Measurement (DC) | Range: 40.00A – 400.0A; Accuracy: ±(2.5% + 8 digits) |
| Voltage Measurement (AC) | Range: 4.000V – 1000V; Accuracy: ±(1.0%–1.5% + 5 digits); Bandwidth: 50Hz–1000Hz |
| Voltage Measurement (DC) | Range: 4.000V – 1000V; Accuracy: ±(1.0%–1.5% + 5 digits) |
| Resistance | Range: 400Ω – 40MΩ; Accuracy: ±(1.0%–4.0% + 3–5 digits) |
| Capacitance | Range: 1nF – 9999µF; Accuracy: ±(3.0%–4.5% + 5–10 digits) |
| Frequency (AC Voltage) | Range: 10Hz – 100kHz; Accuracy: ±(1.0% + 5 digits); Sensitivity: >15VAC rms |
| Duty Cycle | Range: 0.1% – 99.9%; Accuracy: ±(1.0% + 5 digits) |
| Temperature (Type K) | Range: -40°C to 1000°C (-4°F to 1832°F); Accuracy: ±(3% + 5°C or 9°F) |
| Display | Dual LCD Display (4000 counts), Backlit |
| Sampling Rate | Not specified |
| Input Impedance | ~300kΩ (for VDC and VAC) |
| Crest Factor | Not specified |
| Clamp Jaw Opening | Not specified |
| Overvoltage Protection | CAT II 1000V / CAT III 600V |
| Safety Standards | IEC/EN 61010-1; Double Insulation, Pollution Degree 2 |
| Power Supply | 9V Battery (NEDA 1604) |
| Auto Power Off | After approx. 15 minutes of inactivity |
| Dimensions | Not specified |
| Weight | Not specified |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity (Operating) | Max 80% RH up to 31°C (87°F), linearly decreasing to 50% RH at 40°C |
| Approvals | CE Marked |
SPR-217 Datasheet
