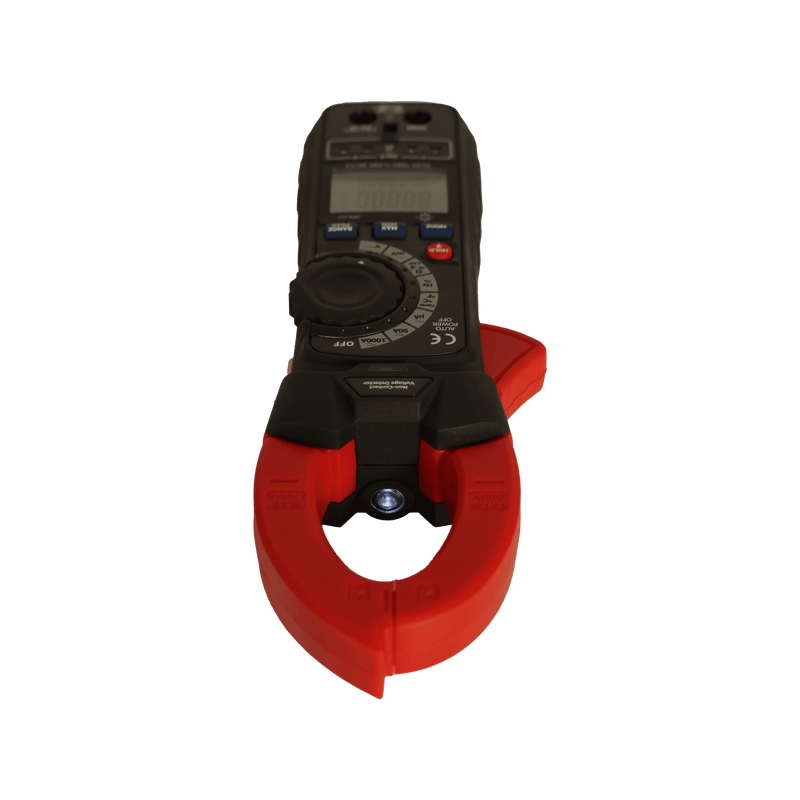

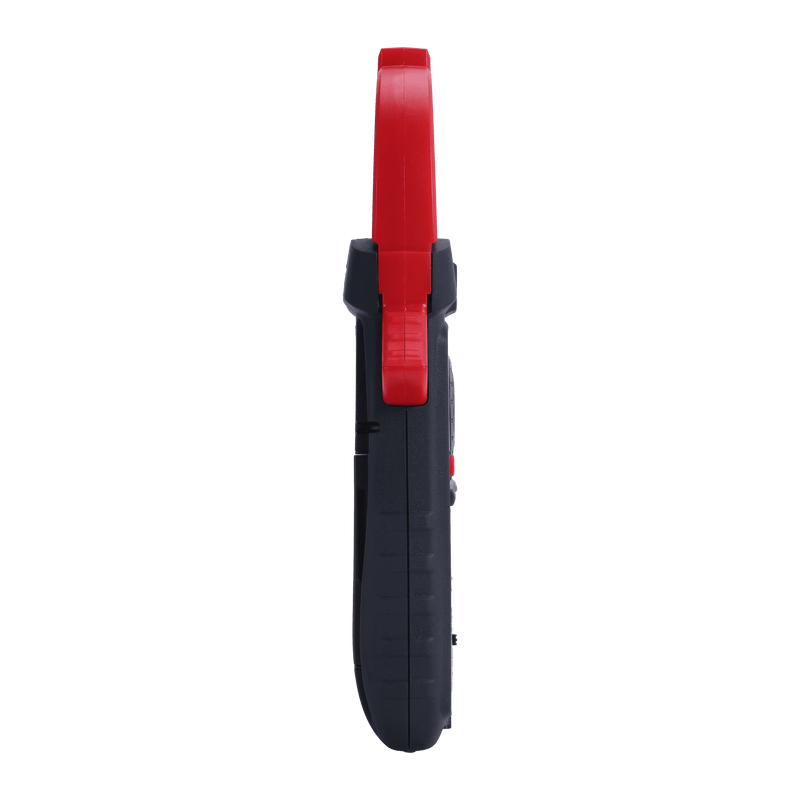

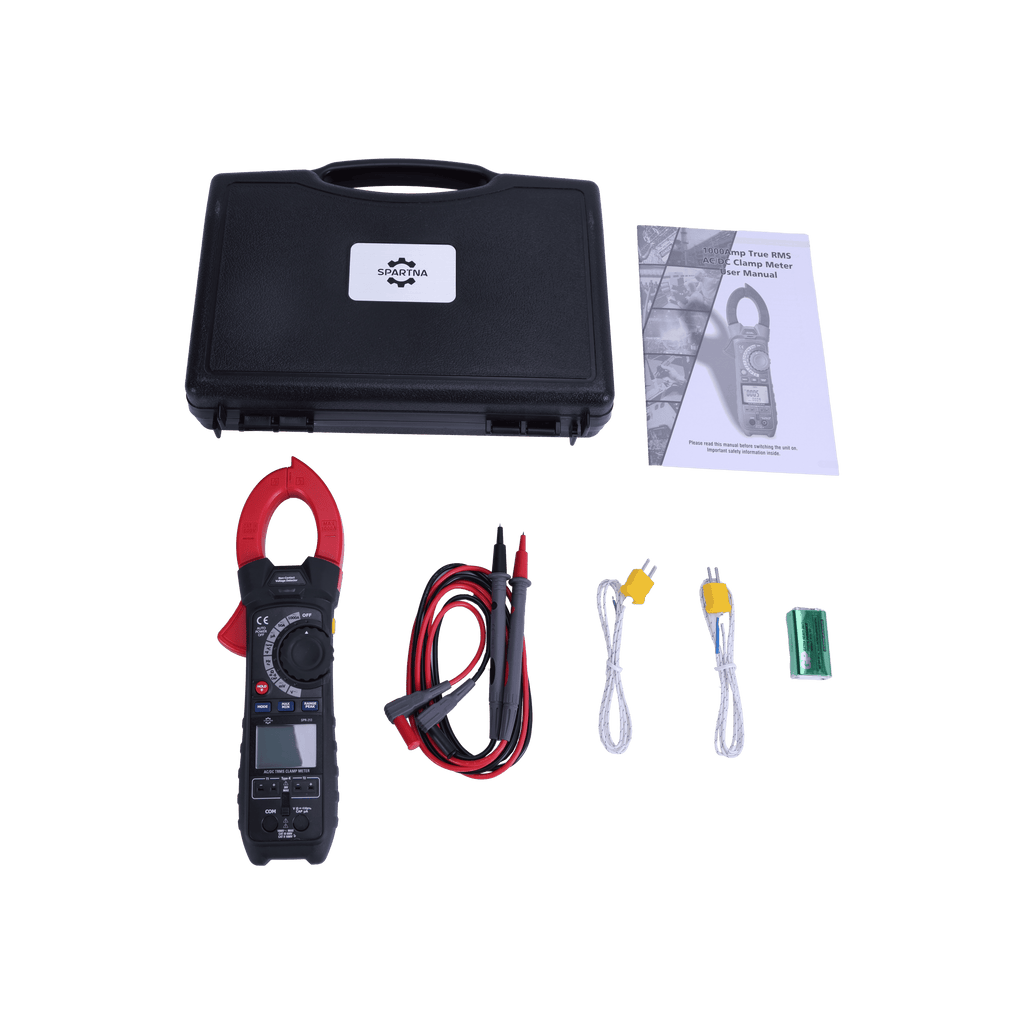

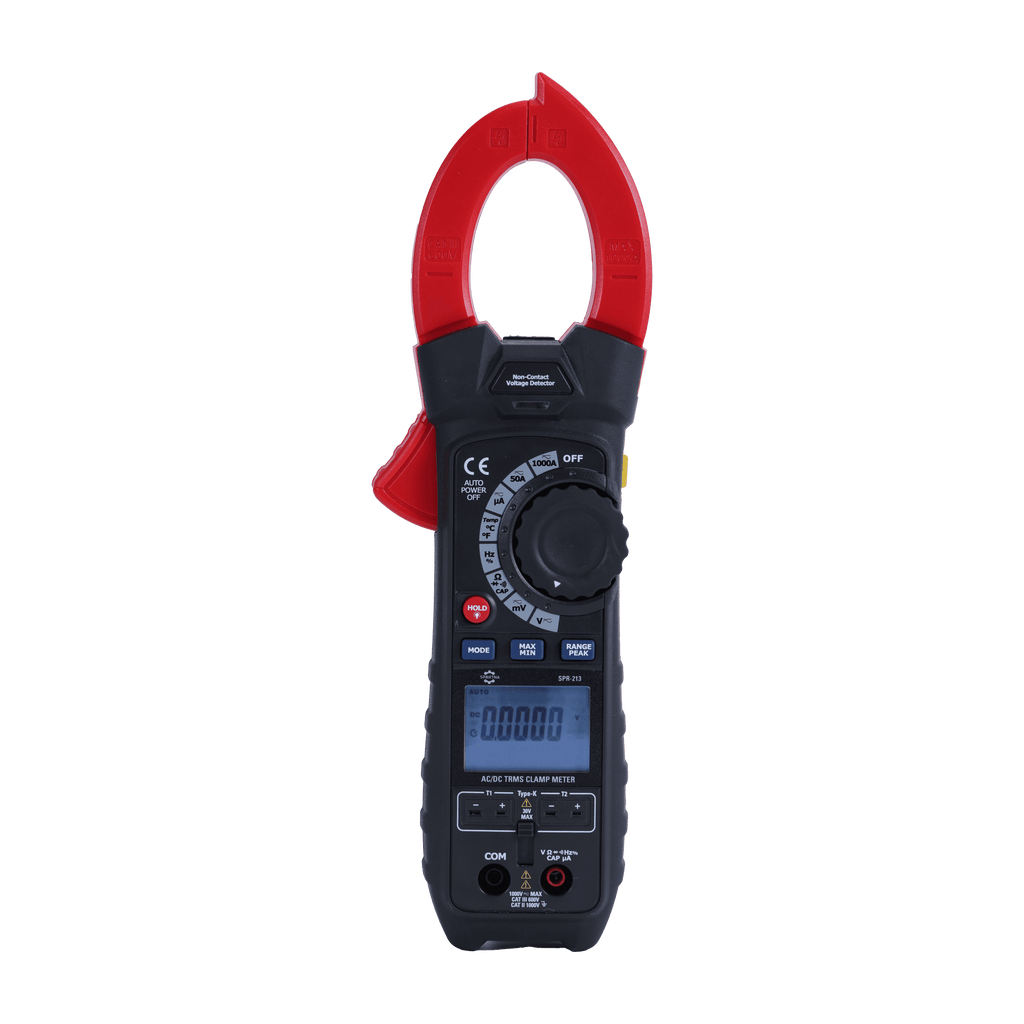

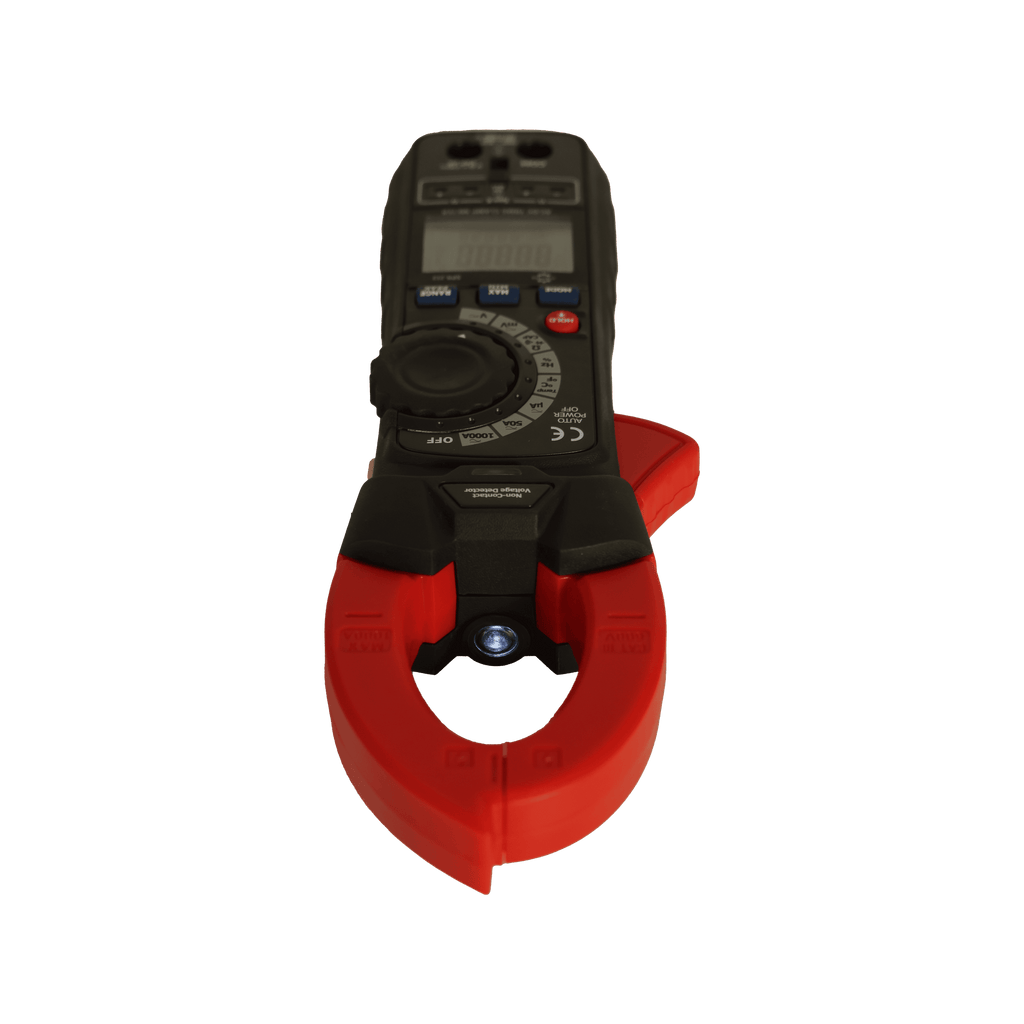

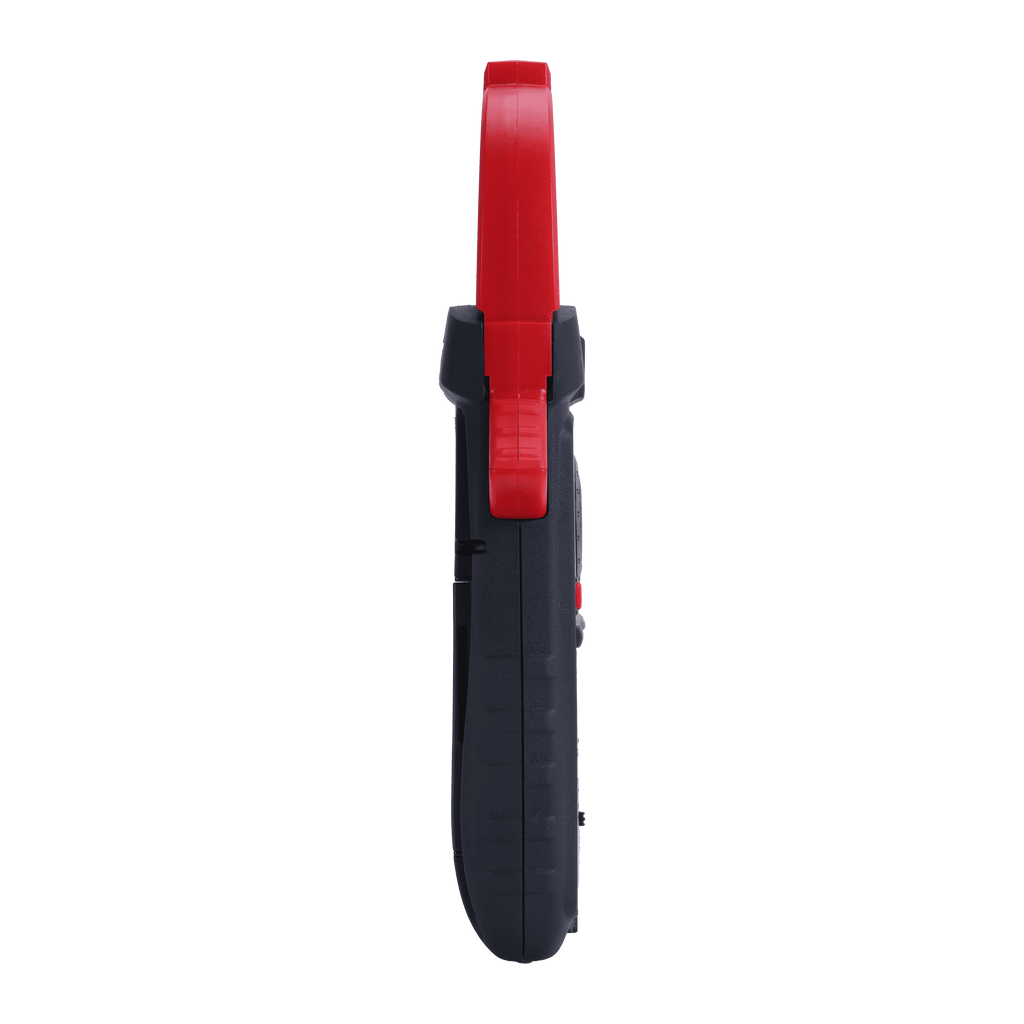

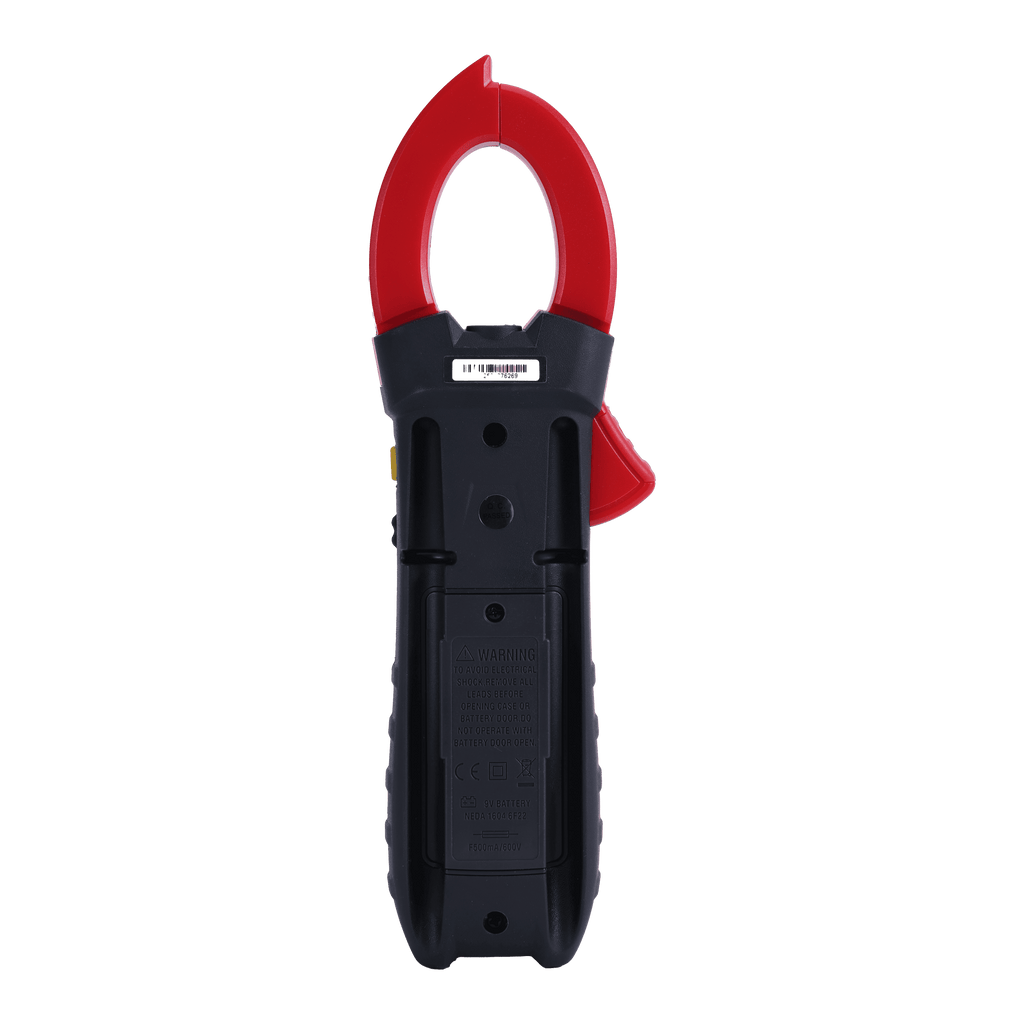

SPARTNA SPR-213 1000Amp True RMS AC/DC Clamp Meter

SpartnaSKU: SPR-213
filler

Price:
Sale priceAED. 850.00
Stock:
Sold out

Description

The 1000Amp True RMS AC/DC Clamp Meter is a professional digital clamp meter designed for accurate current and voltage measurements in industrial and electrical applications. It features a dual molded case for durability, built-in non-contact voltage detection, and support for Type K thermocouple temperature measurements. The device provides high accuracy, fast response times, and safety certifications for reliable operation.


  • True RMS Measurement : Ensures accurate readings for both sinusoidal and non-sinusoidal waveforms.
  • AC/DC Current Measurement : Measures up to 1000A AC or DC with a large jaw opening (48mm).
  • Voltage Measurement : Measures AC/DC voltage up to 600V with high input impedance.
  • Resistance & Continuity Test : Includes continuity buzzer for quick circuit checks.
  • Capacitance Measurement : Supports capacitance testing up to 5000μF.
  • Frequency & Duty Cycle : Measures frequency up to 10MHz and duty cycle from 5% to 95%.
  • Temperature Measurement : Supports Type K thermocouples for temperature measurement (-100°C to 1000°C).
  • Non-Contact Voltage Detection : Detects live conductors without direct contact.
  • Data Hold & MAX/MIN Mode : Captures and stores peak values for analysis.
  • Auto Ranging & Manual Range Selection : Offers flexibility for different measurement scenarios.
  • LCD Backlight : Improves visibility in low-light conditions.
  • Overload Protection : Designed with double insulation and overvoltage protection (CAT III 600V / CAT II 1000V).

Parameter Details
Current Measurement (AC/DC) Range: 50.00A – 1000.0A; Accuracy: ±(2.5% + 5 digits)
uA Measurement (AC/DC) Range: 500.00μA – 5000.0μA; Accuracy: DC ±(1.0% + 6 digits), AC ±(1.5% + 30 digits)
Voltage Measurement (AC/DC) Range: 500mV – 600V; Accuracy: DC ±(0.1% + 4 digits), AC ±(1.0% + 30 digits)
Resistance Range: 500Ω – 50MΩ; Accuracy: ±(1.0% + 5 digits) to ±(3.0% + 10 digits)
Capacitance Range: 500nF – 5000μF; Accuracy: ±(3.5% reading + 10 digits) to ±(5% reading + 10 digits)
Frequency Range: 50Hz – 10MHz; Accuracy: ±(0.3% reading + 2 digits)
Duty Cycle Range: 5.0% – 95.0%; Accuracy: ±(1.0% reading + 2 digits)
Temperature (Type K) Range: -100.0°C to 1000.0°C (-148°F to 1832°F); Accuracy: ±(1.0% reading + 2.5°C)
Display Dual LCD Display (50,000 count), Backlit
Sampling Rate 2 readings per second
Input Impedance 10MΩ (for VDC and VAC)
Crest Factor 3.0 (40A and 400A ranges), 1.4 (1000A range at 50/60Hz)
Clamp Jaw Opening 1.9" (48mm)
Overvoltage Protection CAT III 600V / CAT II 1000V
Safety Standards Complies with IEC 61010-1 (EN 61010-1): Double Insulation, Pollution Degree 2
Power Supply 9V Battery (NEDA 1604)
Auto Power Off After 30 minutes of inactivity (can be disabled)
Dimensions 9.1" x 3.0" x 1.6" (230 x 76 x 40 mm)
Weight 11.1 oz. (315g)
Operating Temperature 5°C to 40°C (41°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity (Operating) Max 80% RH up to 31°C (87°F), linearly decreasing to 50% RH at 40°C
Approvals CE Marked

SPR-213 Datasheet
