Display
|
2.8" TFT Color LCD (6000 count), Analog Bargraph
|
Measurement Functions
|
Voltage (AC/DC & AC+DC), Current (AC/DC & AC+DC), Resistance, Capacitance, Diode Test, Continuity, Frequency, Duty Cycle, Temperature, Flexible Coil Current
|
Voltage Measurement Range
|
600mV – 1000V
|
Voltage Accuracy
|
±(0.09% + 5 digits) DC<br>±(0.8% + 5 digits) AC (50Hz–60Hz)
|
Current Measurement Range
|
0.1µA – 10A (mA/µA)<br>30A – 3000A (Flexible coil)
|
Current Accuracy
|
±(0.9% + 5 digits) DC<br>±(1.2% + 5 digits) AC
|
Resistance Range
|
600Ω – 60MΩ
|
Resistance Accuracy
|
±(0.5% + 5 digits)
|
Capacitance Range
|
60nF – 6000µF
|
Capacitance Accuracy
|
±(1.5% + 20 digits)
|
Frequency Range
|
40Hz – 10MHz
|
Temperature Range
|
-40°C to 1000°C (-40°F to 1800°F)
|
Temperature Accuracy
|
±(1.5% + 3°C)
|

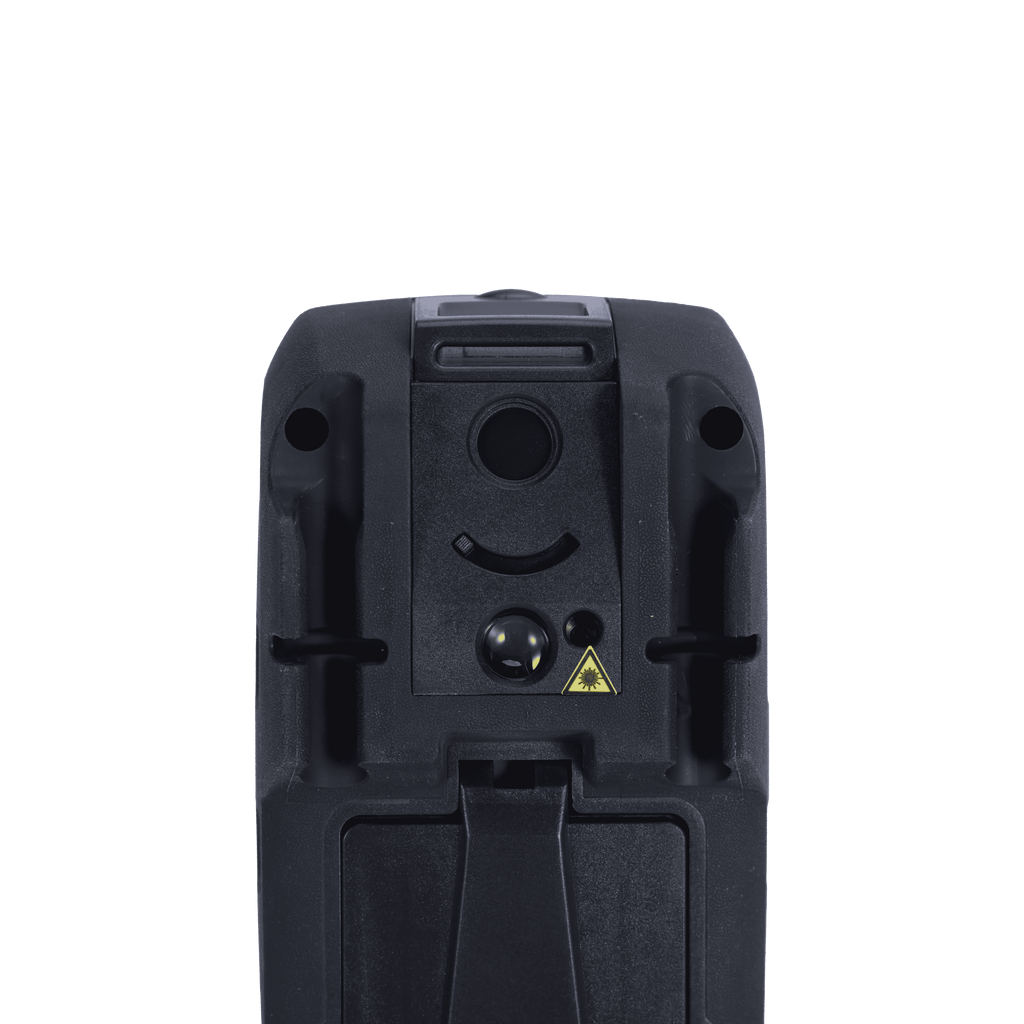

Thermal Imager Resolution
|
80 x 80 pixels
|
Thermal Frame Rate
|
50Hz
|
Field of View (FOV)
|
21° x 21°
|
IFOV (Instantaneous FOV)
|
4.53 mrad
|
Thermal Temp Range
|
-20°C to +260°C (-4°F to +500°F)
|
Thermal Accuracy
|
±3°C or ±3% of reading
|
Power Supply
|
Rechargeable Li-ion Battery (7.4V, 2300mAh)
|
Auto Power Off
|
After 15–60 minutes
|
Input Protection
|
1000V AC/DC Max<br>Fuse: 800mA (mA/µA), 10A (10A Input)
|
Dimensions
|
175 x 85 x 55 mm (7 x 3 x 2 in)
|
Weight
|
540g (with battery)
|
