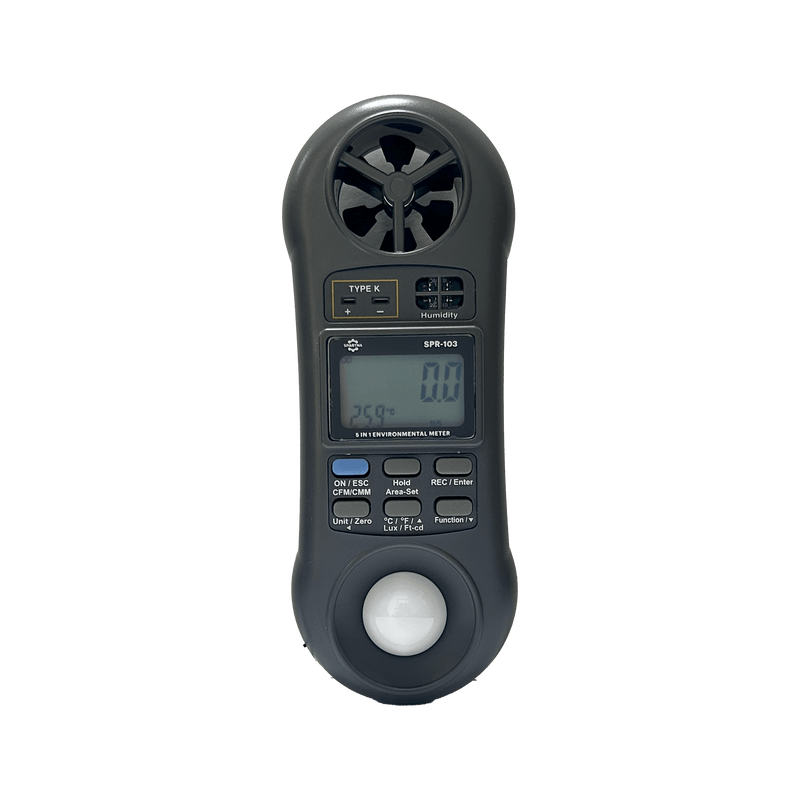

The SPARTNA SPR-103 is a compact, handheld 5-in-1 professional meter designed for HVAC, environmental monitoring, and industrial applications. It combines an anemometer, airflow calculator (CFM/CMM), hygrometer, thermometer (built-in + Type K), and lux meter in one lightweight “bone-shaped” device. Features include Max/Min memory, dual-channel display, selectable units, and microprocessor-based accuracy — ideal for field technicians requiring multi-parameter environmental readings in one tool.
- 5-in-1 functionality: Air Velocity, Air Flow (CFM/CMM), Humidity, Temperature (Built-in & Type K), Light (Lux/Ft-cd)
- Compact, lightweight “bone” shape for one-hand operation with wrist strap
- High-accuracy low-friction ball-bearing vane for air velocity measurement
- C.I.E. photopic spectrum-matching light sensor with correction filter
- High-precision thin-film capacitance humidity sensor
- Type K thermocouple input (NiCr-NiAl) for extended temperature range
- Microprocessor-based for high accuracy and stability
- Dual-channel LCD for simultaneous readings (e.g., Temp + RH or Temp + Velocity)
- Max/Min memory and Data Hold functions
- Manual area input for precise airflow calculation (CFM/CMM)
- Selectable units: °C/°F, Lux/Ft-cd, m/s, ft/min, km/h, MPH, knots
- Light meter zero calibration function
- Powered by 9V battery
| Parameter | Range / Value | Resolution | Accuracy | Unit |
| Air Velocity | 80 – 5,910 | — | ≤20m/s: ±3% F.S.<br>>20m/s: ±4% F.S. | ft/min |
| 0.4 – 30.0 | — | m/s | ||
| 1.4 – 108.0 | — | km/h | ||
| 0.9 – 67.0 | — | mile/h | ||
| 0.8 – 58.3 | — | knots | ||
| Air Flow (CMM) | 0 – 54,000 | — | Depends on area input | CMM |
| Area Setting (CMM) | 0.001 – 30.000 | — | — | m² |
| Air Flow (CFM) | 0 – 1,908,400 | — | Depends on area input | CFM |
| Area Setting (CFM) | 0.01 – 322.92 | — | — | ft² |
| Humidity | 10 – 95 | — | <70% RH: ±4% RH<br>≥70% RH: ±(4% rdg + 1.2% RH) | % RH |
| Temp (Built-in) | 0 – 50 | — | ±1.2°C / ±2.5°F | °C / °F |
| Temp (Type K) | -100 – 1,300 | — | ±(1% rdg + 1°C) / ±(1% rdg + 2°F) | °C / °F |
| Light (Low Range) | 0 – 2,200 | 1 | ±5% rdg ±8 dgt | Lux |
| Light (High Range) | 1,800 – 20,000 | 10 | ±5% rdg ±8 dgt | Lux |
| Light (Ft-cd Low) | 0 – 204.0 | 0.1 | ±5% rdg ±8 dgt | Ft-cd |
| Light (Ft-cd High) | 170 – 1,860 | 1 | ±5% rdg ±8 dgt | Ft-cd |
| Display | 8mm LCD | — | — | — |
| Operating Temp. | 0 – 50 | — | — | °C / °F |
| Operating Humidity | Max 80% | — | — | % RH |
| Power Supply | 9V DC battery | — | — | — |
| Dimensions | 156 x 60 x 33 | — | — | mm |
| Weight | 160 | — | — | g |
