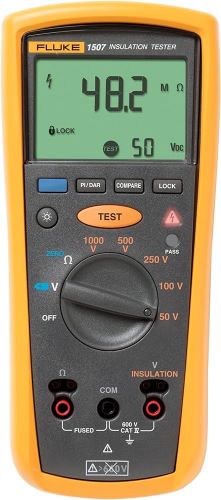

Fluke 1507 Insulation Resistance Tester

Save 8%
FLUKESKU: 1507
filler

Price:
Sale priceAED. 2,940.00 Regular priceAED. 3,200.00
Stock:
Re-stocking soon

Description

The Fluke 1507 is a versatile, compact, handheld insulation tester for advanced industrial and electrical insulation testing. Its multiple test voltages make it the ideal tool for many troubleshooting, commissioning, and preventative maintenance applications.

Take advantage of the 1507 full feature set to easily and quickly perform advanced insulation resistance testing. Its handy size and light weight make it easy to pack and use. Additional features, like the remote probe, save both time and money especially when performing repetitive tests. And its reasonable price and rugged reliability make it an excellent value.



  • Rugged, compact advanced insulation resistance tester for electrical contractors and industrial and commercial electricians
  • Automatically calculates Polarization Index and Dielectric Absorption Ratio
  • Makes repetitive tests simple and easy with a Compare (Pass/Fail) function
  • Offers multiple insulation test voltages: 50 V, 100 V, 250 V, 500 V, and 1000 V
  • Performs insulation tests from 0.01 MΩ to 10 GΩ
  • Includes live circuit detection to prevent insulation test if voltage >30 V is detected
  • Includes auto-discharge of capacitive voltage for added user protection
  • Measures AC/DC voltage from 0.1 V to 600 V and resistance from 0.01 Ω to 20.00 kΩ
  • Provides lo-ohms earth-bond continuity (200 mA)
  • Simplifies repetitive or hard-to-reach testing with the remote test probe
  • Saves battery power with auto power off
  • Presents results on a large, backlit display
  • Features CAT IV 600 V overvoltage category rating
  • Comes with remote probe, test leads, test probes, alligator clips and one-year warranty
  • Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
  • Runs on four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
  • Included accessories: TL224 Test Leads, TP74 Test Probes, clips PN 1958654 (red) and PN 1958646 (black), holster and remote probe

  • AC/DC Voltage Measurement
    Range: 600.0 V
    Resolution: 0.1 V
    Accuracy: ±(2% + 3)
    Input impedance: 3 MΩ (nominal), < 100 pF
    Common mode rejection ratio (1 kΩ unbalanced): > 60 dB at DC, 50 or 60 Hz
    Overload protection: 600 V rms or DC

  • Earth Bond Resistance Measurement
    Range / Resolution: 20Ω (0.01Ω) / 200Ω (0.1Ω) / 2000Ω (1.0Ω)/ 20kΩ (0.01kΩ)
    Accuracy: ±(1.5% + 3)
    Overload protection: 2 V rms or DC
    Open circuit test voltage: > 4.0 V, < 8 V
    Short circuit current: > 200.0 mA

  • Insulation Specifications
    Measurement range: 0.01 MΩ to 10 GΩ
    Test voltage: 50 V, 100 V, 250 V, 500 V, 1000 V
    Test voltage accuracy: + 20%, - 0%
    Short circuit current: 1mA nominal
    Auto discharge: Discharge time < 0.5 second for C = 1 µF or less
    Live circuit indicator: Inhibit test if terminal voltage > 30 V prior to initialization of test
    Maximum capacitive load: Operable with up to 1 µF load
    Measure accuracy:
    50 V: ±(3% + 5)
    100 V: ±(3% + 5)
    250 V: ±(1.5% + 5)
    500 V: ±(1.5% + 5)
    1000 V: ±(1.5% + 5) to 2000 MΩ, ±(10% + 3) above 2000 MΩ


  • Maximum voltage applied to any terminal: 600 V AC rms or DC

  • Storage temperature: -40°C to 60°C (-40°F to 140°F)

  • Operating temperature: -20°C to 55°C (-4°F to 131°F)

  • Temperature coefficient: 0.05 x (specified accuracy) per °C for temperatures < 18°C or > 28°C (< 64°F or > 82°F)

  • Relative humidity:
    0% to 95% @ 10°C to 30°C (50°F to 86°F)
    0% to 75% @ 30°C to 40°C (86°F to 104°F)
    0% to 40% @ 40°C to 55°C (104°F to 131°F)

  • Vibration: Random, 2 g, 5-500 Hz per MIL-PRF-28800F, Class 2 instrument

  • Shock: 1 meter drop per IEC 61010-1 2nd Edition (1 meter drop test, six sides, oak floor)

  • Electromagnetic compatibility: In an RF field of 3 V/M, accuracy = specified accuracy (EN 61326-1:1997)

  • Safety: Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement category IV 600 V (CAT IV)

  • Certifications: CSA per standard CSA/CAN C22.2 No. 61010.1-04; TUV per standard IEC/EN 61010-1 2nd Edition

  • IP rating: IP40

  • Batteries: Four AA batteries (NEDA 15A or IEC LR6)

  • Size (H x W x L): 5.0 x 10.0 x 20.3 cm (1.97 x 3.94 x 8.00 in)

  • Weight: 550 g (1.2 lb)
