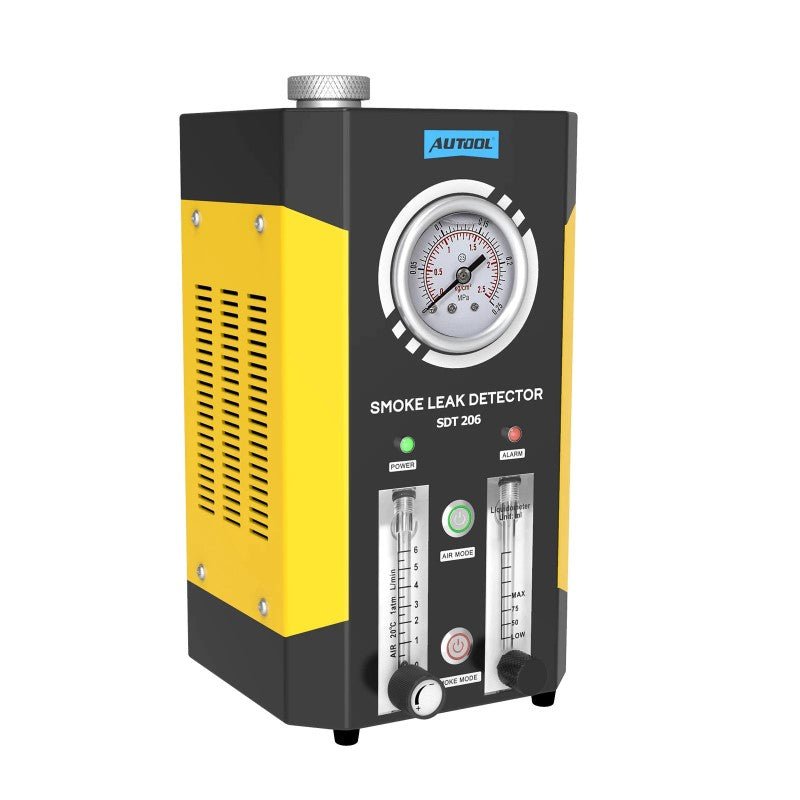

AUTOOL SDT206 Car Smoke Leak Detector


Sale priceAED. 1,699.00
In stock

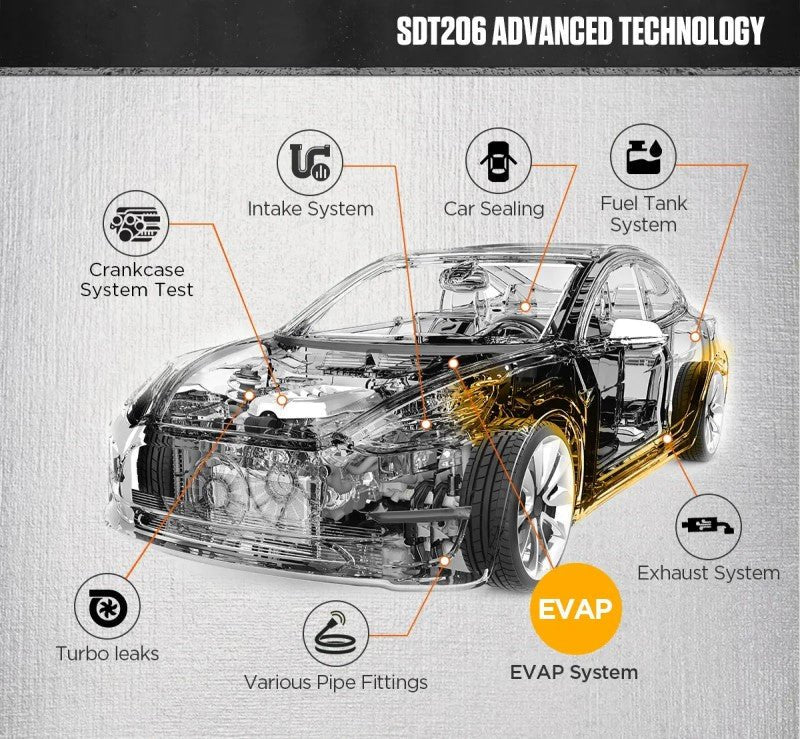

AUTOOL automotive smoke machine model SDT206 is a professional auto pipe leak detecter and tester. It can help us position cars motorcycles leakage on the pipe systems quickly and accurately, such as Intake System Test, Exhaust Systems Test, Crankcase system test,Car Sealing Test, Fuel Tank System Test, Turbo System Test,Various Pipe Fittings Test.

  1. [Wide Range of Applications]: For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats boats. Suitable for all car models.
  2. [Powerful and Easy to Operate] : The AUTOOL SDT 206 has its own Air Pump without relying on other machines and Pressure Gauge with precise scales. Simply connect the detector with the DC12V battery, it can output thick smoke within 30s after turning on.
  3. [Advanced Technology]: It works on the EVAP system. (Provided with another version that specially designed for EVAP system). Equipped with dual flow meters for accurate data display & Independently controlled Air mode and Smoke mode.
  4. [Overheat & Anti-frost Protection]: This smoke detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power to secure the safety of both the operator and device.

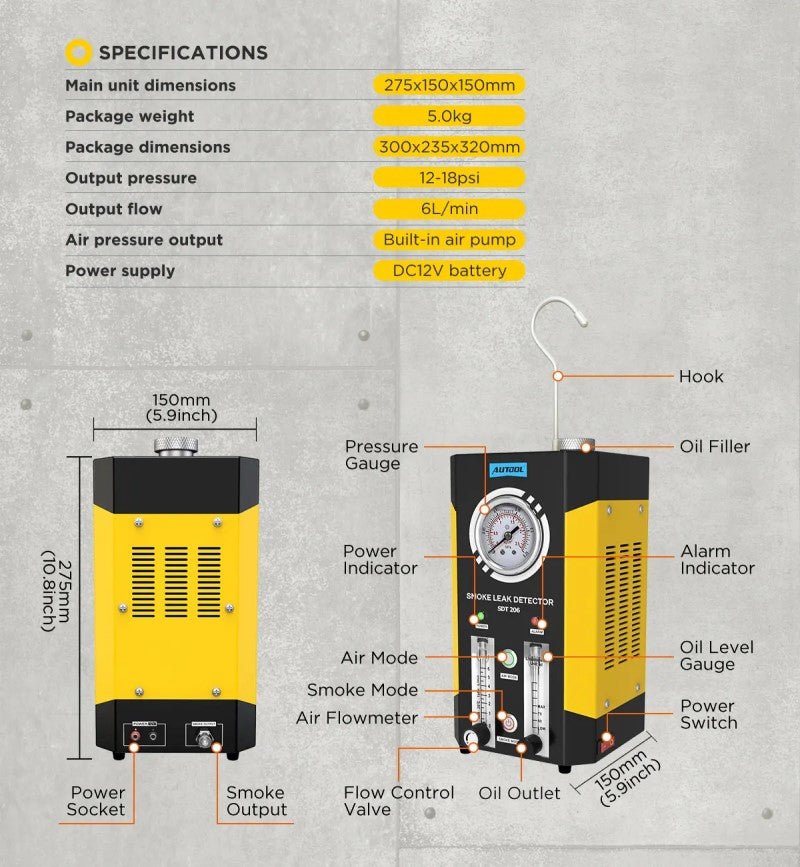

  • Output pressure: 0~23Psi
  • Output flow:6L/Min
  • Power supply:12V
  • Air source:Built-in
  • Test oil capacity: 15ML
  • Test Oil: Mineral oil or baby oil (Not included)
  1. When you use this AUTOOL SDT 206 Automotive Smoke Machine for the first time, fill with 20ml oil . Please be careful NOT to beyond this range.

  2. The testing liquid : both liquid paraffin and baby oil are OK.

  3. Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time.

  4. Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.

  5. During the process of leak detection, please keep away from smoke-sensitive parts.

  6. Do NOT run the detector over 8 minutes continuously. It needs interval rest.

  7. The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.

  8. The round part of this detector has temperature, please be careful to avoid burns.

  9. If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.

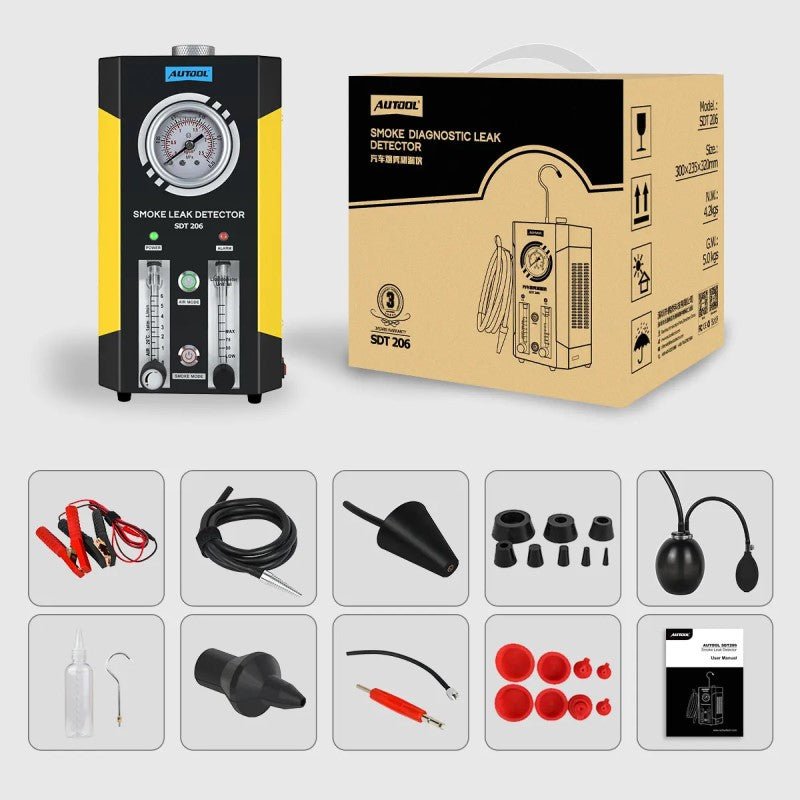

  • 1pcs * AUTOOL SDT 206 Automotive Smoke Machine Main Unit
  • 1pcs * Hook (with hand-tighten nuts)
  • 1pcs * Rubber Connect Parts
  • 1sets * Hard Rubber Hose Plug (with serial specification)
  • 1sets * Soft Rubber Hose Plug (with serial specification)
  • 1pcs * Standard Cone Adapter
  • 1pcs * Universal Airbag Adapter
  • 1pcs * Power Cord Clamp
  • 1pcs * Valve Core Wrench
  • 1pcs * Test Oil Refill Bottle(oil not included)
  • 1pcs * EVAP Special Connector
  • 1pcs * Smoke Hose
  • 1pcs * User Manual
