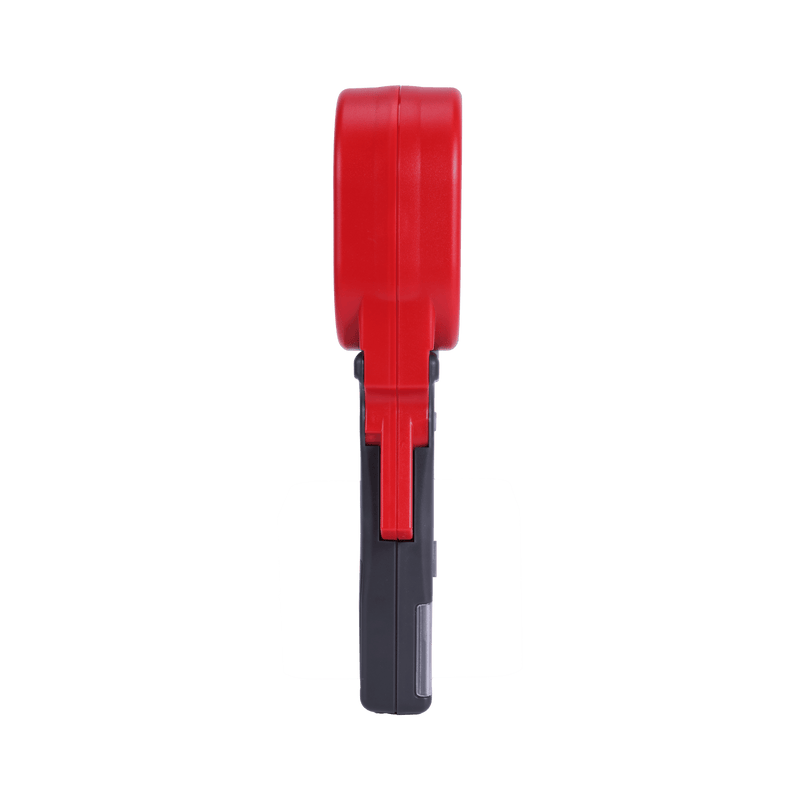

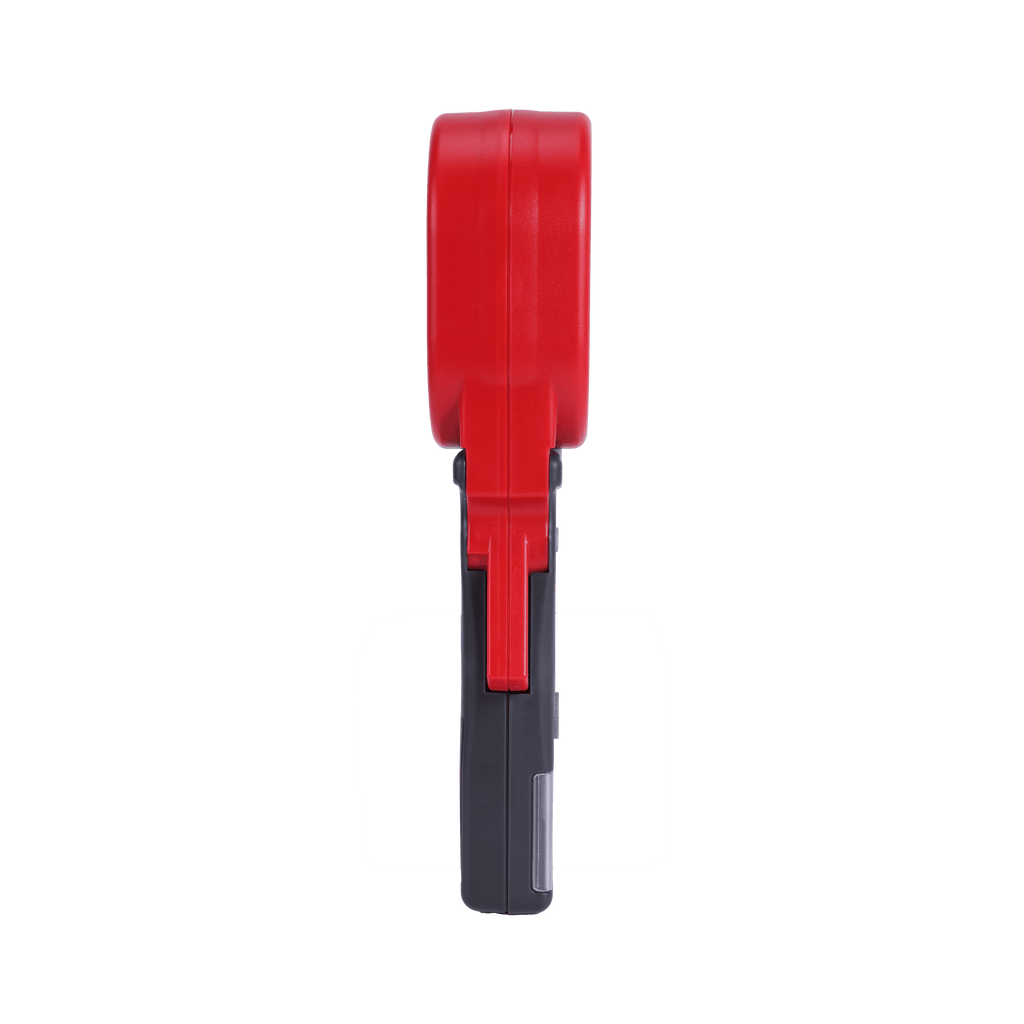

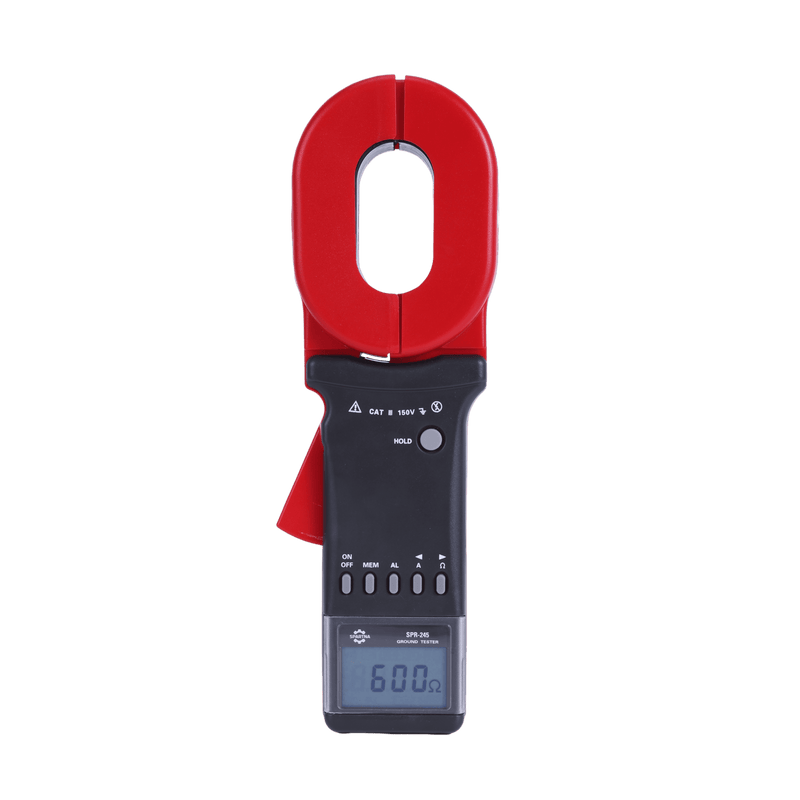

SPARTNA SPR-245 Earth Ground Clamp Meter

SpartnaSKU: SPR-245
filler

Price:
Sale priceAED. 2,800.00
Stock:
Sold out

Description

The SPARTNA SPR-245 Earth Ground Clamp Meter is designed for ground resistance measurement and circuit resistance measurement in various fields, including electricity, telecommunications, meteorology, oil fields, construction, and industrial electrical equipment.

The SPARTNA SPR-245 Earth Ground Clamp Meter is a professional and reliable tool designed for ground resistance measurement and circuit resistance analysis in various industries, such as power, telecommunications, meteorology, oilfields, construction, and industrial electrical equipment. It enables safe and efficient measurements without the need to break grounding wires or use auxiliary electrodes.


  • Measures grounding resistance and loop current without breaking the grounding wire
  • No requirement for auxiliary electrodes, ensuring fast and simple operation
  • Detects faults beyond the range of traditional methods
  • Capable of measuring combined resistance of grounding body and grounding lead
  • Long jaw design ideal for flat steel grounding applications
  • Large LCD display with backlight for clear visibility
  • Built-in alarm for critical resistance and current values
  • Lightweight and portable with a durable build

Parameter Specification
Resistance Range 0.01Ω ~ 1200Ω
Max. Resolution (Resistance) 0.001Ω
Basic Accuracy (Resistance) ±(1.0% + 10d)
Current Measurement Range 0 ~ 20A
Current Frequency 50Hz / 60Hz
Leakage Current Range 1mA ~ 499mA
Leakage Current Resolution 1mA
Leakage Current Accuracy ±(2.5% + 2d)
Test Frequency >1kHz
Alarm Threshold (Resistance) 1Ω ~ 199Ω
Alarm Threshold (Current) 1mA ~ 499mA
Power Supply 4 x AA batteries
Dimensions 285mm × 85mm × 56mm
Jaw Size 32mm × 65mm
Weight 1160g
Operating Temperature -10°C ~ 55°C
Relative Humidity 10%RH ~ 90%RH
Measuring Time 0.5 seconds
