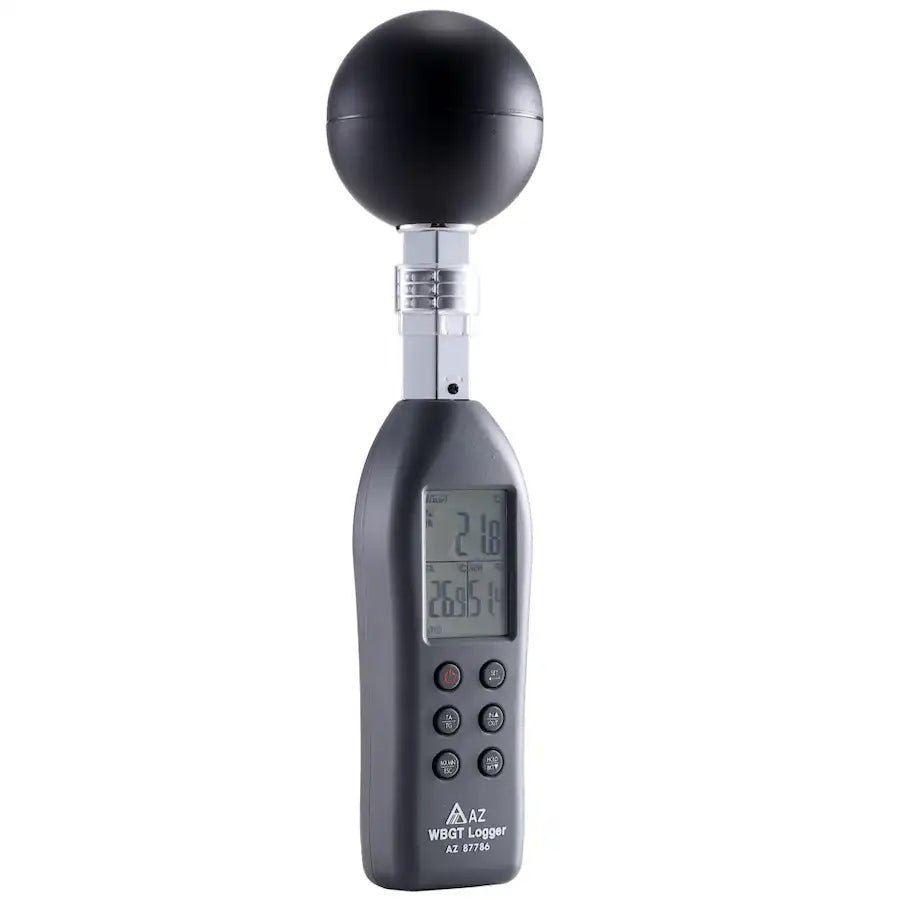

WBGT (wet-bulb globe temperature) was developed as a monitoring basis at US military training camps and became widespread for the use in workplaces and sports situations. It is suggested in an international standard ISO 7243 and many governments such as OSHA (US Occupational Safety & Health Administration),SMA(Sports Medicine Australia)and Japan Society for Occupational Health in establishing the permissible heat exposure limits in occupational health, sports or other physical activities. The applications of the heat index can be in construction, iron and steel foundries,
bricks-firing plants, glass facilities, boiler rooms, mining sites, army training,
marathon, beach activities and so on.
-
Simultaneously display WBGT, temperature & humidity
-
Check Indoor/Outdoor WBGT, TA/TG & Humidity
-
Plug & Play. Software and USB driver are not required
-
Generate csv report without additional PC software
-
Completely user re-programmable. 8 languages, sampling rate, start delay time and ID setting
-
One button switch to check Air/ Globe temperature & In/Out WBGT
-
Designed with capacitance type humidity sensor to get accurate and quick reading
-
Backlight indicator function (Green,yellow, red, flashing red) as WBGT condition reminder
- Easy-to-read big LCD display with 6 dust proof rubber keys
-
Clear sheath to protect humidity sensor during storage
-
Filter to protect humidity sensor from dust scratch during operation
-
75 mm black metal ball to measure globe temperature
-
Temperature unit ℃/℉ switchable
-
Hold function to freeze reading and Max/Min function included
-
Battery low indicator & Sleep mode can be disabled
-
Tripod receptacle design for long time use
-
Audible beeper for danger zone warning
- Humidity self-calibration via salt bottles kit
| Model | 87786 |
| Temperature Range | 0~50℃ |
| Temperature Resolution | 0.1℃, 0.1℉ |
| Temperature Accuracy | ±0.6℃ |
| Humidity Range | 0.1~99.9% RH |
| Humidity Resolution | 0.1% RH |
| Humidity Accuracy | ±3%RH (at 25℃, 10~90%RH); others ±5%RH |
| Global Temperature (Inside Black Ball) | 0~80℃ |
| Global Temp. Accuracy (Indoor) | ±1℃at 15~40℃, others ±1.5℃ |
| Global Temp. Accuracy (Outdoor) | ±1.5℃at 15~40℃, others ±2℃ |
| WBGT Temperature Range | 0~50℃ |
| WBGT Alarm Range | 20~50℃ |
| Sampling Rate | 1, 5, 10, 30, 60, 90, 120 mins |
| Start Delay Time | 0, 5, 30, 45, 60, 90, 120 mins |
| Memory Points | 12000 readings, each contains WBGT, TA, TG and RH |
| Black Ball Size | Diameter 75 mm, Height 75 mm |
| Stabilization Time | 15~25 minutes typical |
| RH% Self Calibration | With 33% & 75% Salt Bottle |
| Operating Temperature | 0~50℃ |
| Operating RH% | Humidity ＜80% |
| Storage Temperature | -20~50℃ |
| Storage RH% | Humidity ＜90% |
| LCD Size | 50(L) * 32(W) mm |
| Meter Size | 302(L) * 75(W) * 36.7(H) mm |
| Weight | ~300g |
| Battery | AAA*4PCS |
| Battery Life | ~200 hours |
| Standard Package | Meter, Batteries, Manual, Mini USB cable, Paper Box |
